| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TDL5Y |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Capacity: | 8x100ml | Temperature Setting Range: | Room Temperature ~ 80℃ |
|---|---|---|---|
| Temperature Control Accuracy: | ±2℃ | Heating Mode: | High-performance Heating Module |
| Power Supply: | AC220V 50Hz 18A | Overall Dimensions (LxWxH): | 590mmx660mmx420mm |
| Net Weight: | 55kg | Maximum Speed: | 5000r/min |
| High Light: | Crude Oil Moisture Determination Centrifuge AC220V,Crude Oil Moisture Determination Centrifuge 50Hz |
||

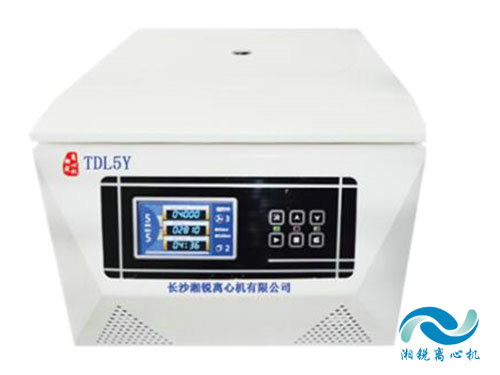

TDL5Y Desktop Crude Oil Moisture Determination Centrifuge
Main technical performance
Microcomputer control, AC variable frequency motor drive, stable operation, low noise, complete machine noise ≦58dB(A), high speed accuracy, speed accuracy ± 20r/min.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
Large color screen display, humanized interface, simple and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with an electronic door lock, it has multiple protection functions such as door cover self-locking, overspeed, overtemperature, imbalance, etc.; it also has an automatic fault alarm function, which is safe and reliable.
It has 9 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
The main technical parameters
| Model | TDL5Y |
| Maximum speed | 5000r/min |
| Maximum relative centrifugal force | 4390xg |
| Maximum capacity | 8x100ml |
| Speed accuracy | ± 20r/min |
| Time setting range | 1min~999min |
| Temperature setting range | room temperature ~ 80℃ |
| Temperature control accuracy | ±2℃ |
| Heating mode | High-performance heating module |
| Overall machine noise | ≦58dB(A) |
| Power supply | AC220V 50Hz 18A |
| Overall dimensions (LxWxH) | 590mmx660mmx420mm |
| Net weight | 55kg |
Application areas
The constant-temperature crude oil moisture determination centrifuge is a special centrifugal equipment used by the petroleum mining industry and scientific researchers to separate large-capacity petroleum moisture.Widely used in refining laboratories, oil production workstations and petroleum research studios, etc.
Adapt rotor parameters
| Rotor number | Rotor type | Rotor capacity | Maximum speed | Maximum relative centrifugal force |
| *** | Horizontal rotor | 16×10/15ml | 4000r/min | 2860xg |
| NO.2 | Horizontal rotor | 8×50/100ml | 4000r/min | 2980xg |
