| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TD4-T |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Relative Centrifugal Force: | 6060xg | Maximum Speed: | 6000r/min |
|---|---|---|---|
| Maximum Capacity: | 4x750ml | Speed Accuracy: | ± 10r/min |
| High Light: | Automatic Decapping Centrifuge 6000r/Min,Desktop Automatic Decapping Centrifuge,Desktop Centrifuge 6000r/Min |
||

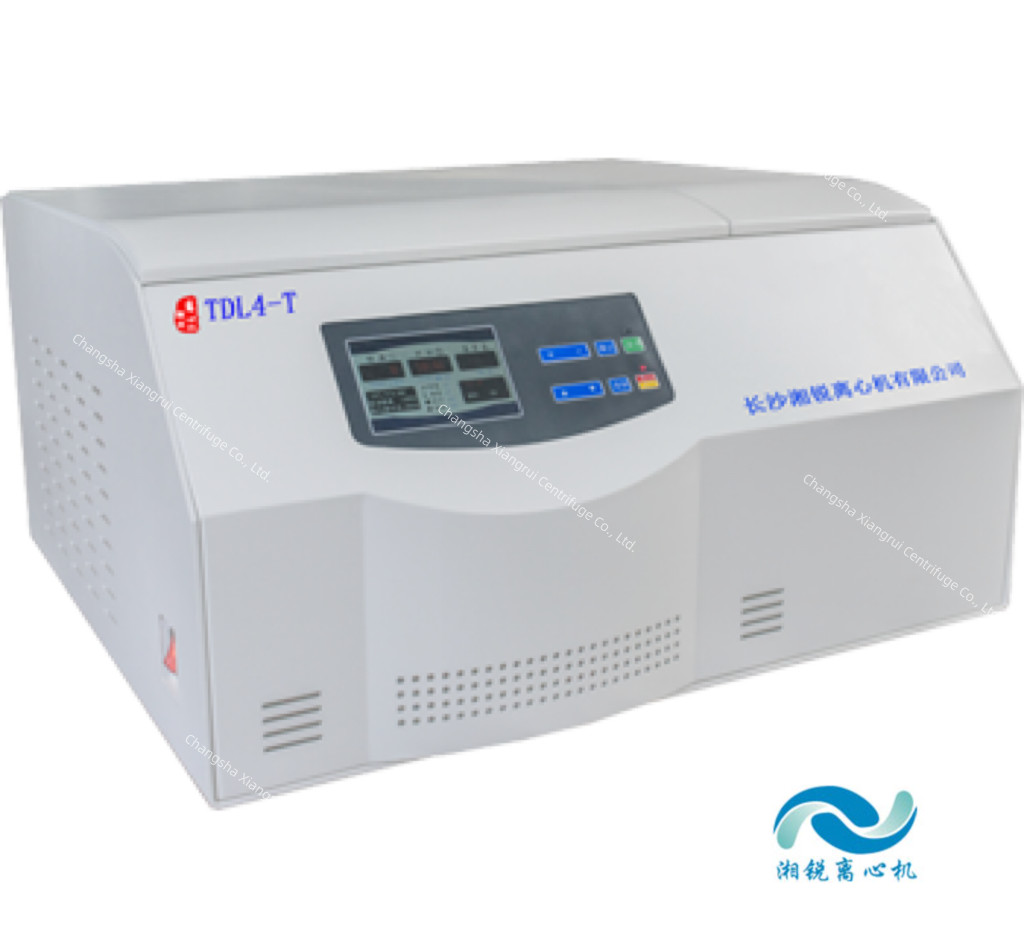

TD4-T Desktop Fully Automatic Decapping Centrifuge Maximum Capacity 4x750ml
Main technical performance
1. The vacuum blood collection tube automatically removes the cap, and the success rate of removing the cap is 100%.
2. Suitable for capping vacuum blood collection tubes in three lengths: 106/101/81mm.
3. Large screen true color display, humanized operation interface, easy and convenient to use.
4. Real-time reading conversion and setting between rpm/RCF, convenient and fast.
5. Electronic door lock is used, which is safe and reliable.
6. It adopts a special shock-absorbing structure with good shock-absorbing effect and has automatic balancing function.
7. Equipped with various protection functions such as imbalance, overspeed, and door cover protection.
8. TD4-T desktop fully automatic decapping centrifuge with a maximum speed of 6000r/min and a maximum capacity of 4x750ml
Application areas
TD4-T This machine is widely used in various large and medium-sized hospitals, blood stations, radioimmunoassays, nuclear medicine and other units. It eliminates the problem of manual cap removal when separating vacuum blood collection tubes, greatly reducing the labor intensity of staff. It is an ideal choice for various comparative hospitals. Ideal instrument for blood centrifugation.
The main technical parameters
| Model | TD4-T |
| Maximum speed | 6000r/min |
| Maximum relative centrifugal force | 6060xg |
| Speed accuracy | ± 10r/min |
| Maximum capacity | 4x750ml |
| Time setting range | 1min~999min |
| Overall machine noise | <65dB(A) |
| Power supply | AC220V 50Hz 10A |
| Overall dimensions (LxWxH) | 500mmx660mmx450mm |
| Net weight | 55Kg |
Adapted rotor parameters:
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Adapter can be added |
| N0.1 horn rotor | 12x15ml | 6000r/min | 6060xg | 10/5ml |
| No. 2 horizontal uncapping rotor | 32x5/3/2ml | 4000r/min | 3080xg | |
| No. 3horizontal uncapping rotor | 48x5/3/2ml | 4000r/min | 3180xg | |
| No.4 horizontal uncapping rotor | 72x5/3/2ml | 4000r/min | 3380xg | |
| No. 5 horizontal uncapping rotor | 96x5/3/2ml | 4000r/min | 3580xg | |
| No. 6 horizontal rotor | 4x750/500ml | 4000r/min | 3580xg | 250/100/50/10/5ml |
