| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TDL4-T |
| Minimum Order Quantity: | 1pc |
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Model Number: | TDL4-T | Maximum Speed: | 6000r/min |
|---|---|---|---|
| Max RCF: | 6060xg | Maximum Capacity: | 4x750ml |
| Speed Accuracy: | ± 10r/min | Net Weight: | 115Kg |
| Temperature Setting Range: | -20～+40℃ | Time Setting Range: | 1min~999min |
| Temperature Control Accuracy: | ±1℃ | Power Supply: | AC220V 50Hz 15A |
| Overall Dimensions (LxWxH): | 730mmx650mmx390mm | Overall Machine Noise: | ≤58dB(A) |
| High Light: | Automatic Decapping Centrifuge Refrigerated,Tabletop Automatic Decapping Centrifuge,Low Temperature Tabletop Refrigerated Centrifuge |
||

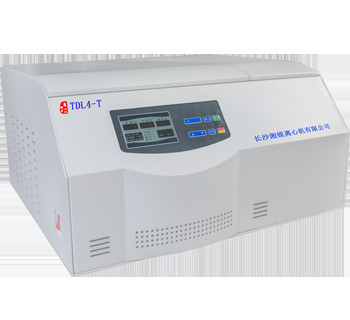

TDL4-T Desktop Low Temperature Fully Automatic Decapping Centrifuge Low Temperature Decapping Centrifuge
Main technical performance
1. The vacuum blood collection tube automatically removes the cap, and the success rate of removing the cap is 100%.
2. Suitable for capping vacuum blood collection tubes in three lengths: 106/101/81mm.
3. Large screen true color display, humanized operation interface, easy and convenient to use.
4. Real-time reading conversion and setting between rpm/RCF, convenient and fast.
5. Use imported high-performance compressor fluorine-free refrigerant R404a, which meets environmental protection requirements.
Good cooling effect.
6. Electronic door lock is used, which is safe and reliable.
7. It adopts a special shock-absorbing structure with good shock-absorbing effect and has automatic balancing function.
8. Equipped with various protection functions such as imbalance, overspeed, and door cover protection.
Application areas
TDL4-T This machine is widely used in various large and medium-sized hospitals, blood stations, radioimmunoassay, nuclear medicine and other units. It eliminates the problem of manual cap removal when separating vacuum blood collection tubes.
It greatly reduces the labor intensity of staff and is an ideal instrument for blood centrifugation in various hospitals.
The main technical parameters
| Model | TDL4-T |
| Maximum speed | 6000r/min |
| Maximum relative centrifugal force | 6060xg |
| Maximum capacity | 4x750ml |
| Speed accuracy | ± 10r/min |
| Time setting range | 1min~999min |
| Temperature setting range | -20～+40℃ |
| Temperature control accuracy | ±1℃ |
| Overall machine noise | ≤58dB(A) |
| Power supply | AC220V 50Hz 15A |
| Overall dimensions (LxWxH) | 730mmx650mmx390mm |
| Net weight | 115Kg |
Adapted rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Max RCF | Adapter can be added |
| 1 horn rotor | 12x15ml | 6000r/min | 6060xg | 10/5ml |
| 2 horizontal uncapping rotor | 48x5/3ml | 4000r/min | 2969xg | |
| 3 horizontal uncapping rotor | 64x5/3ml | 4000r/min | 2969xg | |
| 4 horizontal uncapping rotor | 72x5/3ml | 4000r/min | 3150xg | |
| 5 horizontal uncapping rotor | 96x5/3ml | 4000r/min | 3327xg | |
| 6 horizontal uncapping rotor | 4x750/500ml | 4000r/min | 3580xg | 250/100/50/10/5ml |
