| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TGL-16MCT |
| Minimum Order Quantity: | 1pc |
| Price: | negotiable |
| Packaging Details: | by plywood box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500PCS/MONTH |
| Model: | TGL-16MCT | Max RCF: | 23699×g |
|---|---|---|---|
| Maximum Speed: | 16500r/min | Maximum Capacity: | 6x100ml |
| Speed Accuracy: | ± 10r/min | Time Setting Range: | 1min~999min |
| Temperature Setting Range: | -20～+40℃ | Temperature Control Accuracy: | ±1℃ |
| Dimensions (LxWxH): | 630mm×426mm×340mm | Power Supply: | AC220V 50Hz 10A |
| Net Weight: | 68kg | Overall Machine Noise: | <58dB(A) |
| High Light: | Refrigerated Centrifuge Machine High Speed,Refrigerated Centrifuge Machine CE |
||

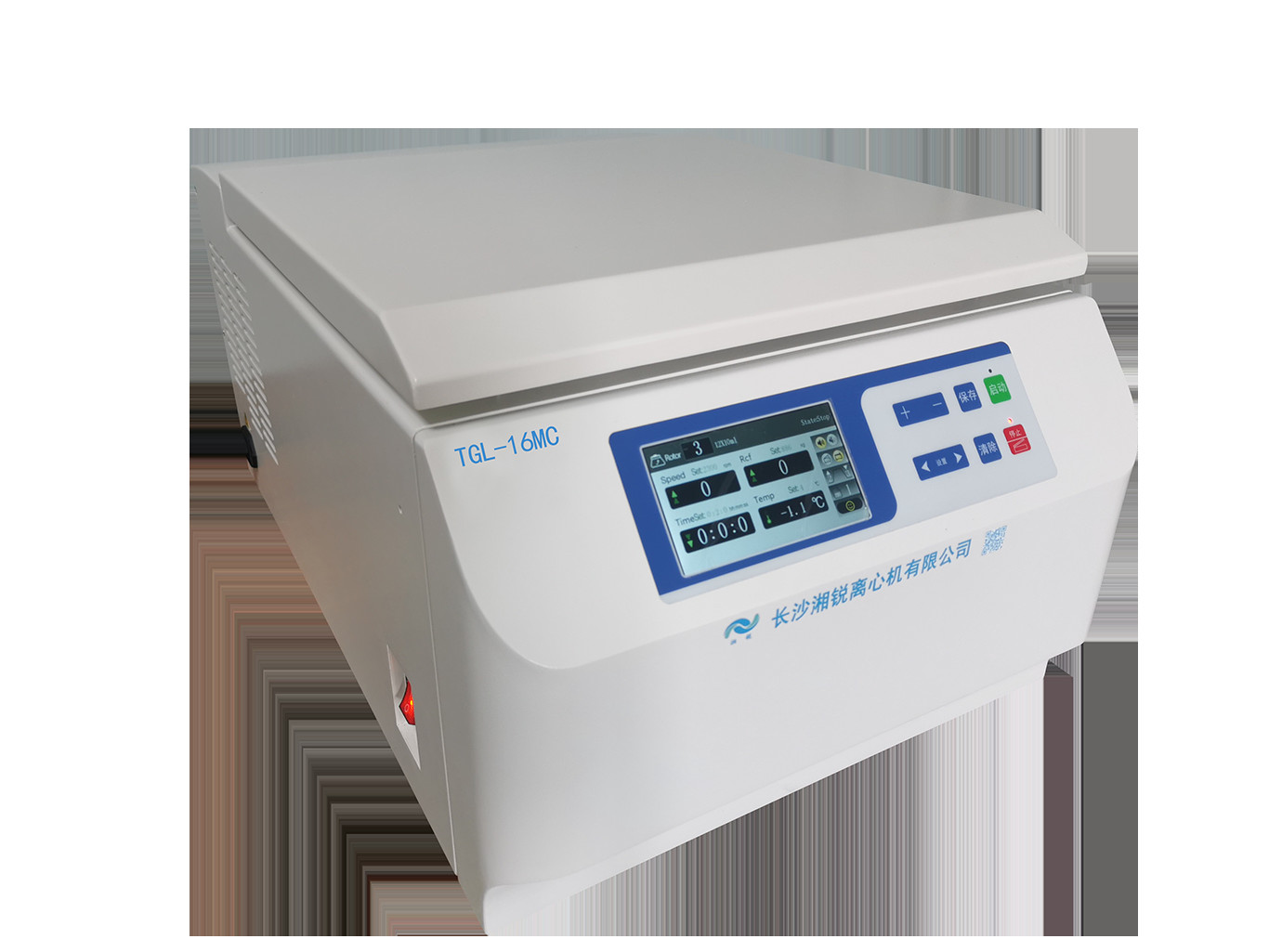

TGL-16MC Desktop High Speed Refrigerated Centrifuge
Main technical performance
Microcomputer control, brushless DC motor drive, stable operation, low noise and high speed accuracy.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
TGL-16MC has a large-screen LCD display, and TGL-16M has a digital display, humanized interface, and easy and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with an electronic door lock, it has various protection functions such as door cover self-locking, overspeed, overtemperature, etc.; it also has an automatic fault alarm function, which is safe and reliable.
It has 20 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
Application areas
TGL-16MC desktop high-speed refrigerated centrifuge is widely used in the fields of clinical medicine, biochemistry, genetic engineering, and immunology.
It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.
The main technical parameters
| Model | TGL-16MC |
| Maximum speed | 16500r/min |
| Maximum relative centrifugal force | 23699×g |
| Maximum capacity | 6x100ml |
| Speed accuracy | ± 10r/min |
| Time setting range | 1min~999min |
| emperature setting range | -20～+40℃ |
| Temperature control accuracy | ±1℃ |
| Compressor unit | imported high-performance compressor unit, environmentally friendly refrigerant R404a |
| Overall machine noise | <58dB(A) |
| Power supply | AC220V 50Hz 10A |
| Overall dimensions (LxWxH) | 630mm×426mm×340mm (L×W×H) |
| Net weight | 68kg |
Adapt rotor parameters
| Rotor number | Rotor name | Capacity (number of tubes × ml) | Maximum rotation speed (r/min) | Maximum centrifugal force × g | Adapter can be added |
| NO.01 | Angle rotor | 12×1.5/2.2ml | 16500 | 18871 | 0.2-0.5m |
| NO.02 | Angle rotor | 8/10/12×5ml | 15000 | 16600 | 0.2-0.5ml/1.5ml |
| NO.03 | Angle rotor | 4×(8×0.2ml) | 14000 | 13590 | PCR8*0.2ml test tube |
| NO.04 | Angle rotor | 24×1.5/2.2ml | 15000 | 21890 | |
| NO.05 | Angle rotor | 30×1.5/2.2ml | 13000 | 17950 | |
| NO.06 | Angle rotor | 36×1.5/2.2ml | 13000 | 15490 | |
| NO.07 | Angle rotor | 48×0.5ml | 16000 | 23669 | |
| NO.08 | Angle rotor | 48×1.5/2.2ml | 13000 | 17570 | |
| NO.09 | Angle rotor | 12×10ml | 13000 | 16240 | |
| NO.10 | Angle rotor | 8/10×15ml | 13000 | 17960 | |
| NO.11 | Angle rotor | 8/10×15ml ( Z ) | 12000 | 15290 | Z ―― Sharp bottom |
| NO.12 | Angle rotor | 6×50ml | 12000 | 14650 | Can be equipped with 10ml adapter |
| NO.13 | Angle rotor | 4×100ml | 11000 | 13200 | |
| NO.14 | Angle rotor | 6×50ml ( Z ) | 11000 | 13120 | Z ―― Sharp bottom |
| NO.15 | Angle rotor | 12×15ml | 11000 | 13520 | |
| NO.16 | Mildew standard rotor | 2×2/4×96 holes | 4000 | 2300 |
