| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | GL-10MC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Speed: | 10000r/min | Maximum Relative Centrifugal Force: | 18380xg |
|---|---|---|---|
| Temperature Control Accuracy: | ±1℃ | Overall Dimensions (LxWxH): | 810mmx710mmx1220mm |
| Machine Noise: | ≦65dB(A) | Net Weight: | 298kg |
| High Light: | High Speed Refrigerated Centrifuge Device,Refrigerated Centrifuge Device 10000r/Min |
||

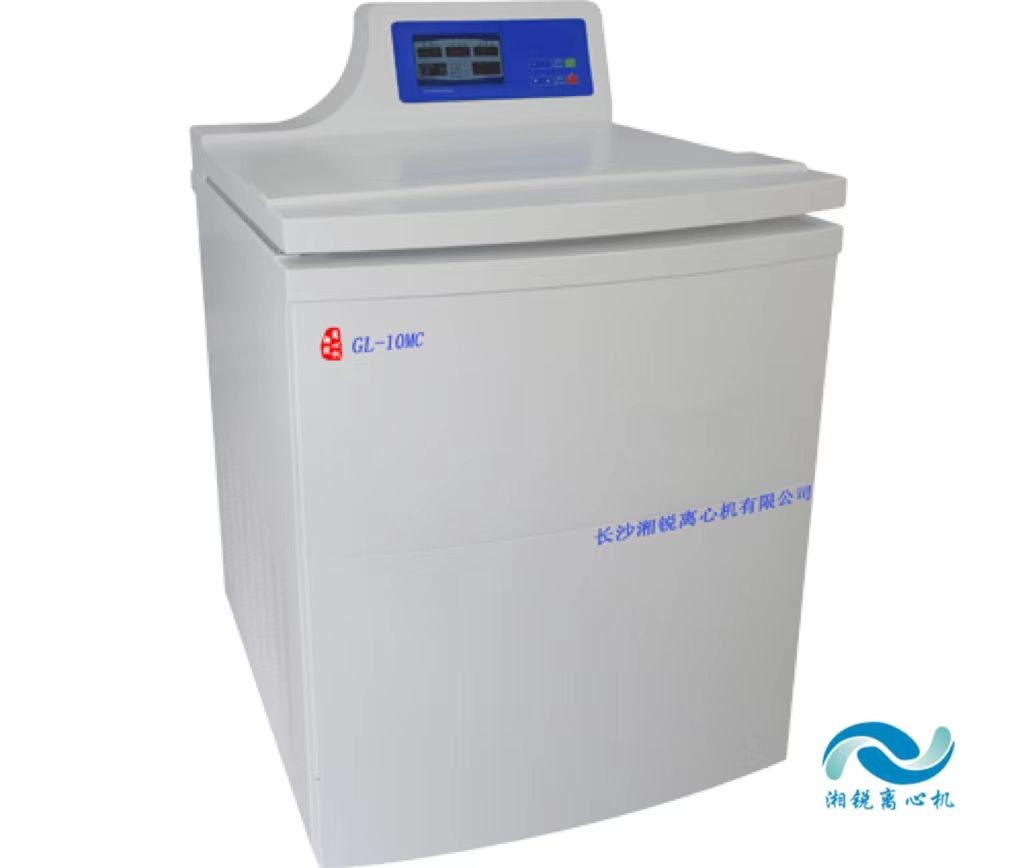

GL-10MC High Speed Refrigerated Centrifuge
Main technical performance
． Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
． It adopts imported high-performance compressor unit and fluorine-free refrigerant R404a, which meets environmental protection requirements.
． Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
． Large-screen LCD display, humanized interface, simple and convenient operation.
． Real-time reading conversion and setting between rpm/RCF, convenient and fast.
． Equipped with an electronic door lock, it has multiple protection functions such as door cover self-locking, overspeed, overtemperature, imbalance, etc.; it also has an automatic fault alarm function, which is safe and reliable.
． It has 10 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
The main technical parameters
| model | GL-10MC |
| Maximum capacity | 6×1000ml |
| Time setting range | 1min~99h59min |
| Speed accuracy | ±20r/min |
| Temperature setting range | -20～+40℃ |
| compressor unit | Imported high-performance compressor unit, environmentally friendly refrigerant R404a |
| power supply | AC220V 50Hz 40A |
Application areas
GL-10MC high-speed refrigerated centrifuge is specially designed for customers with high speed requirements and can be widely used in clinical medicine, bioengineering, genetic engineering, pharmaceuticals and other fields.
Adapt rotor parameters
| Rotor number | Rotor type | Rotor capacity | Maximum speed | Maximum relative centrifugal force |
| NO.1 | angle rotor | 6×300ml | 10000xg | 18380xg |
| NO.2 | angle rotor | 6×500ml | 8000xg | 11680xg |
| NO.3 | angle rotor | 6×1000ml | 7000xg | 11500xg |
| NO.4 | angle rotor | 4×1000ml | 4200xg | 4790xg |
