| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Model Number: | TD4Z-BP |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Model: | TD4Z-BP | Net Weight: | 45kg |
|---|---|---|---|
| Overall Dimensions (LxWxH): | 500mmx590mmx370mm | Rotor Capacity: | 32x15ml |
| Maximum Relative Centrifugal Force: | 2860xg | Maximum Speed: | 4000r/min |
| High Light: | Desktop Medical Centrifuge Equipment,Medical Centrifuge Equipment 2860xg,Low Speed Urine Sediment Centrifuge |
||

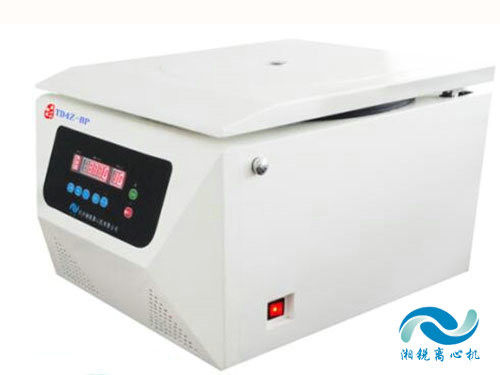

TD4Z-BP Desktop Low-Speed Multi-Tube Rack Urine Sediment Centrifuge
Main technical performance
Microcomputer control, brushless DC motor drive, stable operation, low noise and high speed accuracy.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
Digital screen display, humanized interface, simple and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with electronic door locks, with multiple protection functions such as door cover self-locking and overspeeding; automatic fault alarm function, safe and reliable.
The number of tubes is large, the efficiency is high, and the separation effect is good.
Application areas
The TD4Z-BP desktop low-speed multi-tube rack urine sediment centrifuge is mainly used as a centrifuge equipment for urine sediment analysis instruments and is widely used in clinical medicine, biochemistry, immunology and other fields.
The main technical parameters
| Model | TD4Z-BP |
| Maximum speed | 4000r/min |
| Maximum relative centrifugal force | 2860xg |
| Rotor capacity | 32x15ml |
| Speed accuracy | ± 20r/min |
| Time setting range | 1min~99min |
| Overall machine noise | <58dB(A) |
| Power supply | AC220V 50Hz 5A |
| Overall dimensions (LxWxH) | 500mmx590mmx370mm |
| Net weight | 45kg |
Adapt rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force |
| No. 1 horizontal rotor | 32x15ml | 4000r/min | 2860xg |
