Maximum Capacity: | 4x1000ml | Speed Accuracy: | ±20r/min |
---|---|---|---|
Time Setting Range: | 1min~999min | Overall Machine Noise: | <58dB(A) |
Power Supply: | AC220V 50Hz 20A | Overall Dimensions (LxWxH): | 600mmx650mmx960mm |
Model: | TDL4-T | Net Weight: | 178Kg |
Temperature Setting Range: | -20~+40℃ | Temperature Control Accuracy: | ±1℃ |
High Light: | Low Temperature Floor Standing Refrigerated Centrifuge,Automatic Floor Standing Refrigerated Centrifuge,Floor Standing Automatic Decapping Centrifuge |

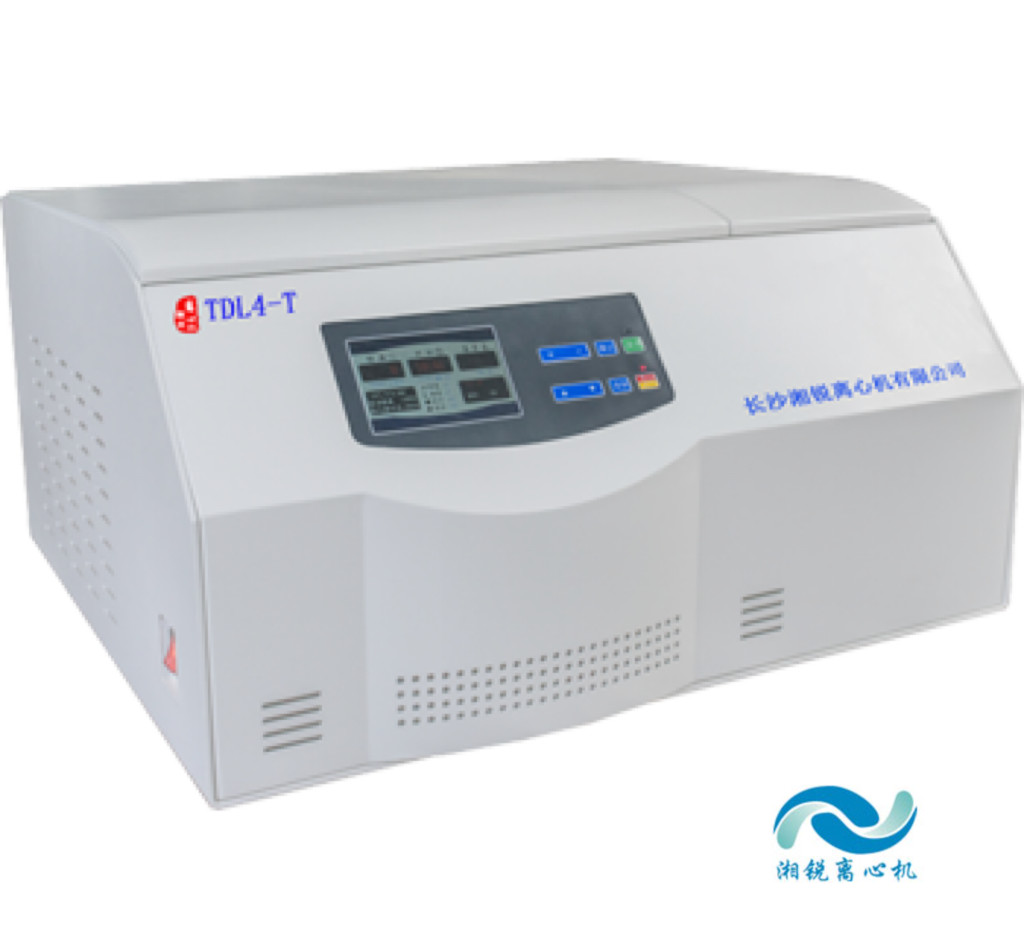

DL4-T Floor-Standing Low Temperature Fully Automatic Decapping Centrifuge Has Excellent Refrigeration Effect
Main technical performance
1. Vacuum blood collection tubes are automatically decapped and have a high success rate of decapping.
2. Suitable for capping vacuum blood collection tubes of three lengths: 106/101/81mm.
3. Large screen true color display, humanized operation interface, easy and convenient to use.
4. Real-time reading conversion and setting between rpm/RCF, convenient and fast.
5. Electronic door lock is used, which is safe and reliable.
6. It adopts a special shock-absorbing structure with good shock-absorbing effect and has automatic balancing function.
7. Equipped with various protection functions such as imbalance, overspeed, and door cover protection.
8.DL4-T floor-standing low-temperature fully automatic decapping centrifugeMaximum speed 6000r/min,Maximum relative centrifugal force 6060xg
Application areas
DL4-T floor-standing low-temperature fully automatic decapping centrifuge is widely used in various large and medium-sized hospitals, blood stations, radioimmunoassays, nuclear medicine and other units. It eliminates the problem of manual cap removal when separating vacuum blood collection tubes, greatly reducing the labor intensity of staff. It is an ideal machine for various comparative hospitals.
Adapt rotor parameters
Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Adapter available |
No.1 horn rotor | 12x10/15ml | 6000r/min | 6060xg | 5/2/1.5ml |
No. 2 horizontal uncapping rotor | 32x3/5/7ml | 4000r/min | 3080xg | 1.5ml |
No. 3horizontal uncapping rotor | 48x3/5/7ml | 4000r/min | 3180xg | 1.5ml |
No. 4 horizontal uncapping rotor | 72x3/5/7ml | 4000r/min | 3380xg | 1.5ml |
No. 5 horizontal uncapping rotor | 96x3/5/7ml | 4000r/min | 3580xg | 1.5ml |
No.6 horizontal uncapping rotor | 120x3/5/7ml | 4000r/min | 3680xg | 1.5ml |
No.7 horizontal uncapping rotor | 144x3/5/7ml | 4000r/min | 3680xg | 1.5ml |
No.8 horizontal rotor | 4x500/750/1000ml | 4000r/min | 3680xg | 250/100/50/10/5/3/2ml |
