| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Model Number: | DD5-MC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Speed: | 5500r/min | Maximum Relative Centrifugal Force: | 5350xg |
|---|---|---|---|
| Maximum Capacity: | 4x1000ml | Overall Machine Noise: | ≦60dB(A) |
| Speed Accuracy: | ± 20r/min | Power Supply: | AC220V 50Hz 15A |
| High Light: | High Precision Medical Centrifuge Machine,Medical Centrifuge Machine Low Speed |
||

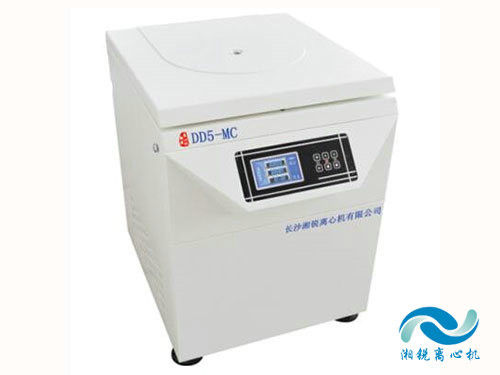

DD5-MC Low Speed Large Capacity Centrifuge Has Low Noise High Speed And High Precision
Main technical performance
1. Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise, whole machine noise ≦60dB(A), high speed accuracy, speed accuracy ± 20r/min.
2. Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
3. Digital screen display, humanized interface, simple and convenient operation.
4. Real-time reading conversion and setting between rpm/RCF, convenient and fast.
5. Equipped with electronic door lock, equipped with various protection functions such as door cover self-locking, overspeed, overtemperature, imbalance, etc.; automatic fault alarm function, safe and reliable.
6. It has 10 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
7. The maximum speed of DD5-MC centrifuge is 5500r/min, the maximum relative centrifugal force is 5350xg, and the maximum capacity is 4x1000ml.
Application areas
DD5-MC centrifuge is widely used in clinical medicine, biology, genetic engineering, immunology and other fields, and is suitable for the separation and purification of radioimmunoassay, water treatment, biochemistry, biopharmaceuticals, and blood products.
The main technical parameters
| model | DD5-MC |
| Maximum capacity | 4x1000ml |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~999min |
| Machine noise | ≦60dB(A) |
| Overall dimensions (LxWxH) | 600mmx650mmx960mm |
| Power supply | AC220V 50Hz 15A |
| net weight | 145kg |
Adapt rotor parameters
| Rotor number | Rotor type | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Additional adapters available | |
| No.1 | horn rotor | 12x10ml | 5500r/min | 5350xg | 5/2ml | |
| No. 2 | Horizontal Rotor | 4x50/100ml | 4200r/min | 2780xg | 30/20/15/10ml | |
| No. 3 | Horizontal Rotor | 8x50/100ml | 4200r/min | 2780xg | 30/20/15/10ml | |
| No. 4 | Horizontal Rotor | 32x10/15ml | 4200r/min | 2780xg | 5/2ml | |
| No. 5 | Horizontal Rotor | 108x5ml | 4200r/min | 2820xg | 2ml | |
| No. 6 | Horizontal Rotor | 120x5ml | 4200r/min | 2820xg | 2ml | |
| No. 7 | Horizontal Rotor | 4x500/750ml | 4200r/min | 3180xg | 5/2ml | |
| No. 8 | Horizontal Rotor | 4x1000ml | 4200r/min | 3280xg | 5/2ml | |
| No. 9 | Horizontal Rotor |
|
4200r/min | 3580xg | 5/2ml |
