| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Model Number: | TD4-TP |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Speed: | 4000r/min | Maximum Relative Centrifugal Force: | 1280xg |
|---|---|---|---|
| Rotor Capacity: | 12 X2ml | Power Supply: | AC220V 50Hz 5A |
| Overall Dimensions (LxWxH): | 350mmx400mmx270mm | Net Weight: | 18kg |
| High Light: | Laboratory Cell Smear Centrifuge,Cell Smear Centrifuge 4000r/min |
||

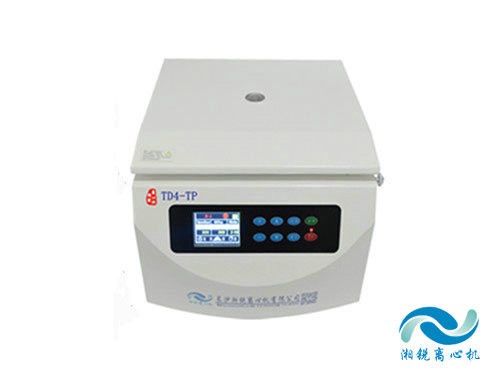

Cell Smear Special Centrifuge TD4-TP
Main technical performance
Microcomputer control, brushless DC motor drive, stable operation, low noise and high speed accuracy.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
Digital screen display, humanized interface, simple and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with electronic door locks, with various protection functions such as door cover self-locking and overspeeding; automatic fault alarm function, safe and reliable.
Application areas
TD4-TP cell smear centrifuge is widely used in immunohematology laboratories, laboratories, and research laboratories. It can perform red blood cell serology experiments, identify antigens and antibodies, and obtain Coomb's test results, etc. It is an ideal choice for comparison hospitals. Essential equipment for blood banks, laboratories, blood stations, medical schools and research institutions.
The main technical parameters
| Model | TD4-TP |
| Maximum speed | 4000r/min |
| Maximum relative centrifugal force | 1280xg |
| Rotor capacity | 12 x2ml |
| Speed accuracy | ± 20r/min |
| Time setting range | 1min~999min |
| Overall machine noise | <50dB(A) |
| Power supply | AC220V 50Hz 5A |
| Overall dimensions (LxWxH) | 350mmx400mmx270mm |
| Net weight | 18kg |
Adapt rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force |
| No. 1 right-angle rotor | 6x0.5ml | 4000r/min | 1180xg |
| No. 2 right-angle rotor | 12x2ml | 4000r/min | 1180xg |
| No. 3 right-angle rotor | 6x0.5ml | 4000r/min | 1180xg |
