| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Model Number: | DL-6MC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Speed: | 6000r/min | Maximum Relative Centrifugal Force: | 6780xg |
|---|---|---|---|
| Maximum Capacity: | 6x1500ml (2×6 Bags Of 500ml Blood Bags) | Time Setting Range: | 1min~99h59min |
| Temperature Setting Range: | -20～+40℃ | Temperature Control Accuracy: | ±1℃ |
| High Light: | Large Capacity Refrigerated Centrifuge 6000r/min,Blood Bag Large Capacity Refrigerated Centrifuge,Refrigerated Blood Bag Centrifuge Machine |
||

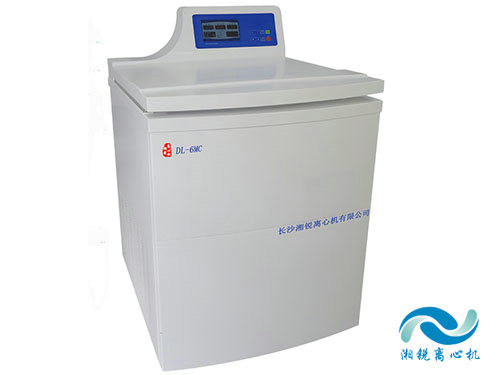

DL-6MC ultra large capacity refrigerated centrifuge
Main technical performance
·Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
·It adopts imported high-performance compressor unit and fluorine-free refrigerant R404a, which meets environmental protection requirements and has good cooling effect.
·Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
·Large-screen LCD display, humanized interface, simple and convenient operation.
·Real-time reading conversion and setting between rpm/RCF, convenient and fast.
· Equipped with electronic door lock, equipped with various protection functions such as door cover self-locking, overspeed, overtemperature, imbalance, etc.; automatic fault alarm function, safe and reliable.
·It has 10 programs of increasing/decreasing rate curves, and the increasing/decreasing time can be set as needed.
The main technical parameters
| model | DL-6MC |
| Maximum speed | 6000r/min |
| Maximum relative centrifugal force | 6780xg |
| Maximum capacity | 6x1500ml (2×6 bags of 500ml blood bags) |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~99h59min |
| Temperature setting range | -20～+40℃ |
| Temperature control accuracy | ±1℃ |
| Machine noise | ≦65dB(A) |
| power supply | AC220V 50Hz 30A |
| Overall dimensions (LxWxH) | 810mmx710mmx1220mm |
| net weigh | 298kg |
Application areas
The DL-6MC large-capacity refrigerated centrifuge is specially designed for customers with large capacity requirements. This model has a large sample processing capacity and is a popular product in central blood stations, pharmaceuticals, bioengineering and other fields.
Adapt rotor parameters
| Rotor number | Rotor type | Rotor capacity | Maximum speed | Maximum relative centrifugal force |
| *** | angle rotor | 6×500/1000ml | 6000r/min | 6780xg |
| NO.2 | angle rotor | 6×1000/1500ml | 5000r/min | 5980xg |
