| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Model Number: | DD5-MC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 2000 sets/month |
| Model: | DD5-MC | Power Supply: | AC220V 50Hz 15A |
|---|---|---|---|
| Overall Dimensions (LxWxH): | 600mmx650mmx960mm | Net Weight: | 115kg |
| Maximum Speed: | 5500r/min | Maximum Relative Centrifugal Force: | 5350xg |
| High Light: | Large Capacity Centrifuge 5500r/Min,Large Capacity Centrifuge 5350xg,Low Speed Centrifuge 5500r/Min |
||

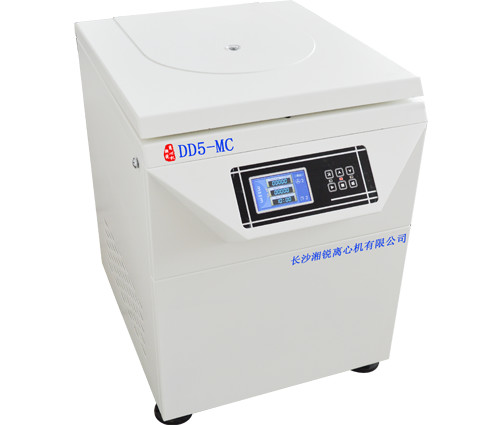

DD5-MC Low-Speed Large Capacity Centrifuge With A Maximum Speed Of 5500r/Min
Main technical performance
1. Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
2. Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
3. Digital screen display, humanized interface, simple and convenient operation.
4. Real-time reading conversion and setting between rpm/RCF, convenient and fast.
5. Equipped with electronic door lock, equipped with various protection functions such as door cover self-locking, overspeed, overtemperature, imbalance, etc.; automatic fault alarm function, safe and reliable.
6. It has 10 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
Application areas
This centrifuge is widely used in clinical medicine, biology, genetic engineering, immunology and other fields, and is suitable for the separation and purification of radioimmunoassay, water treatment, biochemistry, biopharmaceuticals, and blood products.
The main technical parameters
| model | DD5-MC |
| Maximum speed | 5500r/min |
| Maximum relative centrifugal force | 5350xg |
| Maximum capacity | 4x1000ml |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~999min |
| Machine noise | ≦60dB(A) |
| power supply | AC220V 50Hz 15A |
| Overall dimensions (LxWxH) | 600mmx650mmx960mm |
| net weight | 115kg |
Adapt rotor parameters
| Number of rotors | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Additional adapters available |
| 1st horn rotor | 12x10ml | 5500r/min | 5350xg | 5/2ml |
| Horizontal Rotor No. 2 | 4x50/100ml | 4200r/min | 2780xg | 30/20/15/10ml |
| Horizontal Rotor No. 3 | 8x50/100ml | 4200r/min | 2780xg | 30/20/15/10ml |
| Horizontal Rotor No. 4 | 32x10/15ml | 4200r/min | 2780xg | 5/2ml |
| Horizontal Rotor No. 5 | 108x5ml | 4200r/min | 2820xg | 2ml |
| Horizontal Rotor No. 6 | 120x5ml | 4200r/min | 2820xg | 2ml |
| Horizontal Rotor No. 7 | 4x500/750ml | 4200r/min | 3180xg | 5/2ml |
| Horizontal Rotor No. 8 | 4x1000ml | 4200r/min | 3280xg | 5/2ml |
| Horizontal Rotor No. 9 | 4x500/750ml | 4200r/min | 3580xg | 5/2ml |
