| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TG22-WS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Model: | TG22-WS | Maximum Speed: | 22000r/min |
|---|---|---|---|
| Maximum Relative Centrifugal Force: | 35800xg | Maximum Capacity: | 4x100ml |
| Speed Accuracy: | ± 10r/min | Time Setting Range: | 1min~999min |
| Overall Machine Noise: | <58dB(A) | Power Supply: | AC220V 50Hz 10A |
| Overall Dimensions (LxWxH): | 400mmx500mmx350mm | Net Weight: | 35kg |
| High Light: | Desktop High Speed Centrifuge Equipment,High Speed Centrifuge Equipment 10A |
||

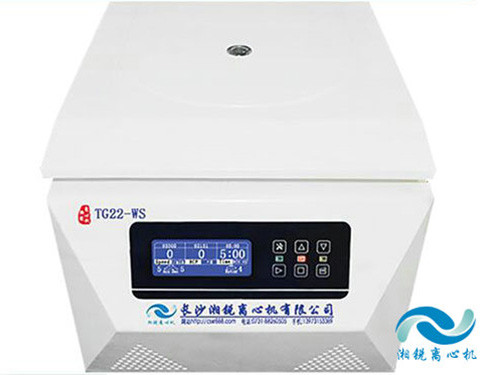

TG22-WS Desktop High Speed Centrifuge
Main technical performance
Microcomputer control, AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
Digital screen (LCD screen) display, humanized interface, simple and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with electronic door locks, with various protection functions such as door cover self-locking and overspeeding; automatic fault alarm function, safe and reliable.
It has 9 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
Application areas
TG22-WS desktop high-speed centrifuge is widely used in the fields of clinical medicine, biochemistry, genetic engineering, and immunology. It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Adapter available |
| No. 1 rotor | 12x1.5/2.2ml | 20000r/min | 35800xg | 0.2ml, 0.5ml |
| No. 2 horn rotor | 8/10x5ml | 15000r/min | 16600xg | 0.2ml, 0.5ml |
| No. 3 horn rotor | 4x(8x0.2)ml | 14000r/min | 13590xg | 0.5ml, 1.5ml |
| No. 4 horn rotor | 24x1.5/2.2ml | 14000r/min | 18400xg | 1.5ml, 5ml |
| No. 5 rotor | 30x1.5/2.2ml | 13000r/min | 17950xg | 5ml, 10ml |
| No. 6 rotor | 36x1.5/2.2ml | 13000r/min | 15490xg | |
| No. 7 rotor | 48x1.5/2.2ml | 13000r/min | 17570xg | |
| No. 8 rotor | 48x0.5ml | 16000r/min | 23669xg |
