| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TG16-X |
| Minimum Order Quantity: | 1pc |
| Price: | negotiable |
| Packaging Details: | by plywood box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500PCS/MONTH |
| Model: | TG16-X | Maximum Speed: | 16000r/min |
|---|---|---|---|
| Maximum Relative Centrifugal Force: | 17800xg | Maximum Capacity: | 24x1.5/2ml |
| Speed Accuracy: | ± 20r/min | Time Setting Range: | 1min~99min |
| Overall Machine Noise: | <60dB(A) | Power Supply: | AC220V 50Hz 5A |
| Overall Dimensions (LxWxH): | 280mmx220mmx265mm | Net Weight: | 9Kg |
| High Light: | Desktop High Speed Centrifuge Machine,High Speed Centrifuge Machine 16000r/Min,Desktop Micro Centrifuge Machine |
||

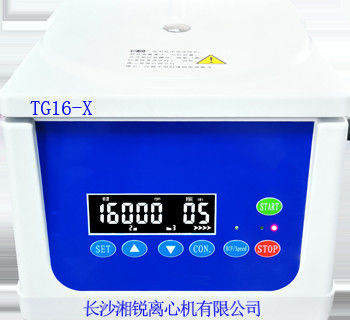

TG16-X Desktop Micro High Speed Centrifuge
Main technical performance
It has a beautiful appearance and an industrial ABS shell. It has a long service life and is easy to clean.
To ensure user safety, the machine stops when the top cover is opened.
It has the quiet and smooth operating performance expected from high-end models.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
The required speed and time can be set according to customer needs.
The memory function stores the parameters of the last run.
Application areas
TG16-X desktop micro-high-speed centrifuge is a necessary centrifugal separation instrument for laboratories, hospitals, and university laboratories.
The main technical parameters
| Brand Name | xiangrui |
| Maximum capacity | 24x1.5/2ml |
| Maximum relative centrifugal force | 17800xg |
| Maximum speed | 16000r/min |
| Time setting range | 1min~99min |
| Speed accuracy | ± 20r/min |
| Overall machine noise | <60dB(A) |
| Dimensions (LxWxH) | 280mmx220mmx265mm |
| Net weight | 9Kg |
| Power supply | AC220V 50Hz 5A |
Adapt rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force |
| No. 1 rotor | 12x1.5/2ml | 16000r/min | 17800xg |
| No. 2 rotor | 8/10x5ml | 16000r/min | 17800xg |
| No.3 rotor | 18x0.5ml | 16000r/min | 17800xg |
| No. 4 rotor | 24x1.5/2.2ml | 16000r/min | 14680xg |
