| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Model Number: | TD4-T |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 50 sets/month |
| Model: | TD4-T | Maximum Speed: | 6000r/min |
|---|---|---|---|
| Maximum Relative Centrifugal Force: | 6060xg | Maximum Capacity: | 4x750ml |
| Speed Accuracy: | ± 10r/min | Time Setting Range: | 1min~999min |
| Overall Machine Noise: | <65dB(A) | Power Supply: | AC220V 50Hz 10A |
| Overall Dimensions (LxWxH): | 500mmx660mmx450mm | Net Weight: | 55Kg |
| High Light: | Fully Automatic Decapping Centrifuge Machine,Decapping Centrifuge Machine 50Hz |
||

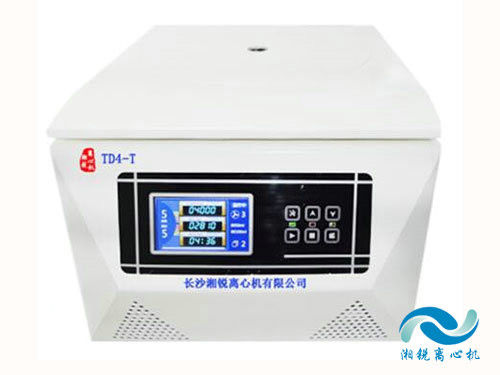

TD4-T Fully Automatic Decapping Centrifuge Decapping Centrifuge
Main technical performance
1. The vacuum blood collection tube automatically removes the cap, and the success rate of removing the cap is 100%.
2. Suitable for capping vacuum blood collection tubes in three lengths: 106/101/81mm.
3. Large screen true color display, humanized operation interface, easy and convenient to use.
4. Real-time reading conversion and setting between rpm/RCF, convenient and fast.
5. Electronic door lock is used, which is safe and reliable.
6. It adopts a special shock-absorbing structure with good shock-absorbing effect and has automatic balancing function.
7. Equipped with various protection functions such as imbalance, overspeed, and door cover protection.
Application areas
TD4-T This machine is widely used in various large and medium-sized hospitals, blood stations, radioimmunoassays, nuclear medicine and other units. It eliminates the problem of manual cap removal when separating vacuum blood collection tubes, greatly reducing the labor intensity of staff. It is an ideal choice for comparison hospitals. Ideal instrument for blood centrifugation. Deeply loved by all department heads.
Adapted rotor parameters:
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Adapter can be added |
| N0.1 horn rotor | 12x15ml | 6000r/min | 6060xg | 10/5ml |
| No. 2 horizontal uncapping rotor | 48x5/3ml | 4000r/min | 2969xg | |
| No. 3horizontal uncapping rotor | 64x5/3ml | 4000r/min | 2969xg | |
| No.4 horizontal uncapping rotor | 72x5/3ml | 4000r/min | 3150xg | |
| No. 5 horizontal uncapping rotor | 96x5/3ml | 4000r/min | 3327xg | |
| No. 6 horizontal rotor | 4x750/500ml | 4000r/min | 3580xg | 250/100/50/10/5ml |
