| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Model Number: | TDZ5-BP |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Maximum Speed: | 5500r/min | Maximum Centrifugal Force: | 5350xg |
|---|---|---|---|
| Maximum Capacity: | 8x100ml | Speed Accuracy: | ±20r/min±10r/min |
| Time Setting Range: | 1min~999min | Overall Machine Noise: | ≦58dB(A) |
| Power Supply: | AC220V 50Hz 10A | Overall Dimensions (LxWxH): | 400mmx500mmx350mm |
| Model: | TDZ5-BP | Net Weight: | 35Kg |
| High Light: | Medical Centrifuge Machine 5500r/Min,Medical Centrifuge Machine 35Kg |
||

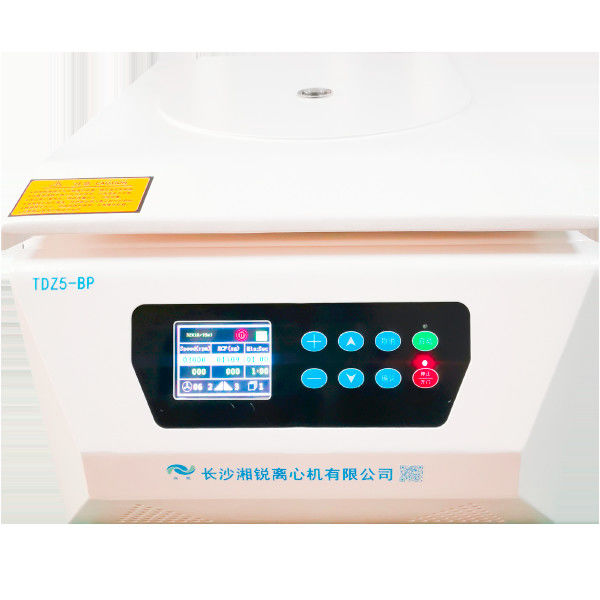

TDZ5-BP Medical Centrifuge
Main technical features
Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
Touch color screen display, humanized interface, simple and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with electronic door locks, with various protection functions such as door cover self-locking and overspeeding; automatic fault alarm function, safe and reliable.
It has 10 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
Application areas
TDZ5-BP desktop low-speed centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and other fields. It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.

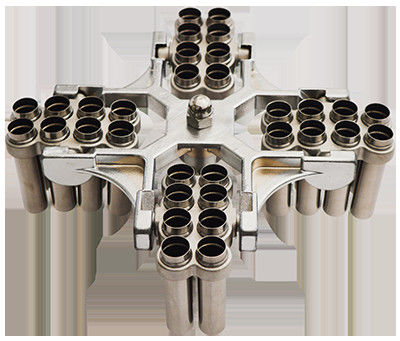

| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal | Adapter available |
| No. 1 horizontal rotor | 12x10/15ml | 5500r/min | 5350xg | 1.5/2.2ml |
| No. 2 horizontal rotor | 16x5ml | 4000r/min | 2680xg | 1.5/2.2/5ml |
| No. 3 horizontal rotor | 24x5ml | 4000r/min | 2680xg | 1.5/2.2/5ml |
| No. 4horizontal rotor | 16x10/15ml | 4000r/min | 2594xg | 1.5/2.2ml |
| No. 5 horizontal rotor | 24x10/15ml | 4000r/min | 2594xg | 1.5/2.2/5ml |
| No. 6 horizontal rotor | 32x7/10ml | 4000r/min | 2683xg | 1.5/2.2/5ml |
| No. 7 horizontal rotor | 48x5/3ml | 4000r/min | 2702xg | 1.5/2.2ml |
| No. 8 horizontal rotor | 4/8x100ml | 4000r/min | 2702xg | 1.5/2.2/5ml |
| No. 9 horizontal rotor | 8x50ml | 4000r/min | 2702xg | 1.5/2.2/5ml |
