| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TD4ZB |
| Minimum Order Quantity: | 1pc |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Speed: | 4000r/min | Maximum Relative Centrifugal Force: | 2720xg |
|---|---|---|---|
| Speed Accuracy: | ±20r/min | Time Setting Range: | 1min~999min |
| Maximum Capacity: | 12x15ml | Net Weight: | 18kg |
| High Light: | Blood Serum Centrifuge 4000r/min,CE Blood Serum Centrifuge,4000r/min Multi Purpose Centrifuge |
||

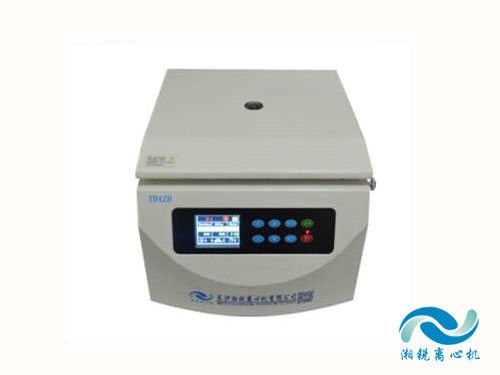

TD4ZB Blood Type Serum Special Centrifuge New Multi Purpose Centrifuge
Main technical performance
1. One instrument can be equipped with three types of rotors; optional rotors include: angle rotor, special horizontal rotor for red blood cell washing, and horizontal rotor for micro-column gel experiment; the rotor replacement is simple.
2. It has 11 built-in working programs, and you can set up customized programs. It has set special standard programs for blood type serology and various experiments.
3. Suitable for routine blood group serological testing: red blood cell washing; micro-column gel immunoassay, etc.
Application areas
TD4ZB blood type card centrifuge is a new multi-purpose centrifuge that our company introduced foreign advanced technology and improved in combination with the domestic industry. This machine is mainly used for blood type serology, blood routine examination, micro-column gel, immune detection and other tests
Host technical parameters
| model | TD4ZB |
| Maximum speed | 4000r/min |
| Maximum relative centrifugal force | 2720xg |
| Maximum capacity | 12x15ml |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~999min |
| Machine noise | <50dB(A) |
| power supply | AC220V 50Hz 5A |
| Overall dimensions (LxWxH) | 350mmx400mmx270mm |
| net weight | 18kg |
Adapt rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force |
| 1st horn rotor | 12x15ml | 4000r/min | 2720xg |
| Micro column gel card rotor 6 columns | 12 cards 24 cards | 2200r/min | 540xg |
| Lymph/red blood cell cleaning detergent | 12x7ml | 3000r/min | 2000xg |
