| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TD5A-WS |
| Minimum Order Quantity: | 1pc |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Model: | TD5A-WS | Maximum Relative Centrifugal Force: | 5350xg |
|---|---|---|---|
| Maximum Capacity: | 4x1000ml | Maximum Speed: | 5500r/min |
| Temperature Setting Range: | -20～+40℃ | Overall Dimensions (LxWxH): | 600mmx590mmx450mm |
| High Light: | Large Capacity Centrifuge Low Speed,Desktop Large Capacity Centrifuge,Low Speed Automatic Balancing Centrifuge |
||

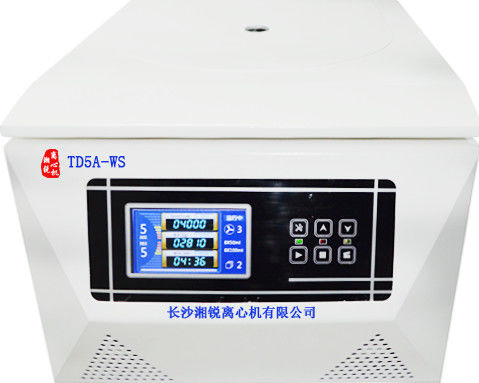

TD5A-WS Desktop Low Speed Large Capacity Centrifuge Multi Tube Rack Automatic Balancing Centrifuge
Main technical performance
· Large screen color display, humanized interface, simple and convenient operation.
· Real-time reading conversion and setting between rpm/RCF, convenient and fast.
· Equipped with an electronic door lock, equipped with multiple protection functions such as door cover self-locking, overspeed, overtemperature, etc.; automatic fault alarm function, safe and reliable.
· Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
· Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
· It has 10 programs of increasing/decreasing rate curves, and the increasing/decreasing time can be set as needed.
The main technical parameters
| model | TD5A-WS |
| Maximum speed | 5500r/min |
| Maximum relative centrifugal force | 5350xg |
| Maximum capacity | 4x1000ml |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~999min |
| Temperature setting range | -20～+40℃ |
| Machine noise | ≦58dB(A) |
| power supply | AC220V 50Hz 10A |
| Overall dimensions (LxWxH) | 600mmx590mmx450mm |
| net weight | 65kg |
Application areas
TD5A-WS multi-tube rack automatic balancing centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and other fields. It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.
Adapt rotor parameters
| Rotor type | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Additional adapters available |
| angle rotor | 12×10/15ml | 5500r/min | 5350xg | 5/2ml |
| horizontal rotor | 8×50/100ml | 4200r/min | 2780xg | 20/10/5ml |
| horizontal rotor | 4×50/100ml | 4200r/min | 2780xg | 20/10/5ml |
| horizontal rotor | 32×10/15ml | 4200r/min | 2780xg | 5/2ml |
| horizontal rotor | 108×5/7ml | 4200r/min | 2860xg | 2ml |
| horizontal rotor | 120×5/7ml | 4200r/min | 2920xg | 2ml |
| horizontal rotor | 4×500ml | 4200r/min | 2980xg | 250/200/5ml |
| horizontal rotor | 4×750ml | 4200r/min | 2980xg | 250/200/5ml |
| horizontal rotor | 4×1000ml | 4000r/min | 3080xg | 5ml |
