| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TD4Z-WS |
| Minimum Order Quantity: | 1pc |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Net Weight: | 20kg | Overall Dimensions (LxWxH): | 350mmx400mmx270mm |
|---|---|---|---|
| Machine Noise: | ≦50dB(A) | Time Setting Range: | 1min~99min |
| Speed Accuracy: | ±20r/min | Maximum Capacity: | 50mlx6 |
| Maximum Relative Centrifugal Force: | 2860xg | Maximum Speed: | 4000r/min |
| High Light: | Low Speed Desktop Centrifuge Equipment,Desktop Centrifuge Equipment 4000r/Min |
||

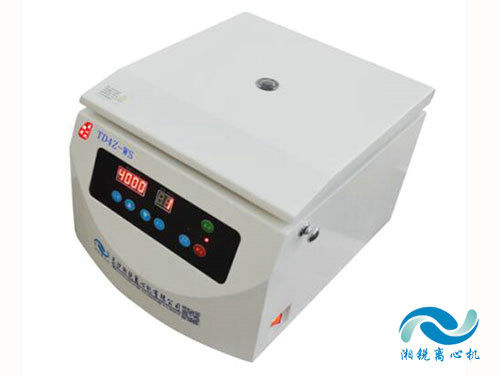

TD4Z-WS Low Speed Desktop Centrifuge Speed Accuracy ±20r/Min
Main technical performance
·Microcomputer control, DC brushless motor drive, stable operation, low noise and high speed accuracy.
·Touch panel, programmable operation, host operating parameters can be set as needed and automatically stored.
·Digital screen display, humanized interface, simple and convenient operation.
·Real-time reading conversion and setting between rpm/RCF, convenient and fast.
·Equipped with multiple protection functions such as overspeed; automatic fault alarm function, safe and reliable.
Application areas
TDZ4-WS desktop low-speed centrifuge can be widely used in clinical medicine, biochemistry, immunology and other fields. It is an ideal instrument for centrifugal separation in comparative hospitals, scientific research units, and colleges and universities.
The main technical parameters
| model | TD4Z-WS |
| Maximum speed | 4000r/min |
| Maximum relative centrifugal force | 2860xg |
| Maximum capacity | 50mlx6 |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~99min |
| Machine noise | ≦50dB(A) |
| power supply | AC220V 50Hz 5A |
| Overall dimensions (LxWxH) | 350mmx400mmx270mm |
| net weight | 20kg |
Adapt rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Additional adapters available |
| 1st horn rotor | 12x10ml | 4000r/min | 2720xg | 5ml, 2ml |
| No. 2 corner rotor | 18x10ml | 4000r/min | 2720xg | 5ml, 2ml |
| No. 3 corner rotor | 12x15ml | 4000r/min | 2720xg | 5ml, 2ml |
| No. 4 corner rotor | 24x10ml | 4000r/min | 2720xg | 5ml, 2ml |
| No. 5 corner rotor | 12x20ml | 4000r/min | 2720xg | 10ml, 5ml, 2ml |
| No. 6 corner rotor | 6x50ml | 4000r/min | 2720xg | 20ml, 10ml |
| No. 7 horizontal rotor | 4x50ml | 4000r/min | 2720xg | 20ml, 10ml |
| No. 8 horizontal rotor | 12x10ml | 4000r/min | 2720xg | 5ml, 2ml |
| No. 9 horizontal rotor | 8x10/15ml | 4000r/min | 2720xg | 5ml, 2ml |
