| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TD6 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Relative Centrifugal Force: | 6060xg | Rotor Capacity: | 4x1000ml |
|---|---|---|---|
| Model: | TD6 | Maximum Speed: | 6000r/min |
| Speed Accuracy: | ±20r/min | Machine Noise: | ≦58dB(A) |
| Overall Dimensions (LxWxH): | 600mmx590mmx450mm | Power Supply: | AC220V 50Hz 10A |
| Time Setting Range: | 1min~999min | Net Weight: | 65kg |
| High Light: | Desktop Large Capacity Centrifuge Machine,Biochemistry Large Capacity Centrifuge Machine |
||

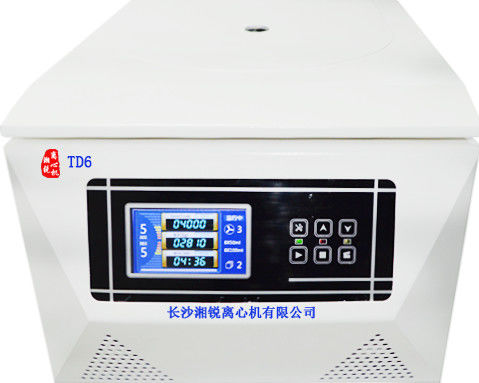

TD6 Desktop Low Speed Large Capacity Centrifuge
Main technical performance
·Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
·Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
·Digital screen (true color large screen) display, humanized interface, simple and convenient operation.
·Real-time reading conversion and setting between rpm/RCF, convenient and fast.
·Equipped with an electronic door lock, equipped with various protection functions such as door cover self-locking and overspeeding; automatic fault alarm function, safe and reliable.
Application areas
TD6 desktop large-capacity centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and other fields. It is a necessary equipment for centrifugal separation in various comparative hospitals, scientific research units and universities.
The main technical parameters
| model | TD6 |
| Maximum speed | 6000r/min |
| Maximum relative centrifugal force | 6060xg |
| Rotor capacity | 4x1000ml |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~999min |
| Machine noise | ≦58dB(A) |
| power supply | AC220V 50Hz 10A |
| Overall dimensions (LxWxH) | 600mmx590mmx450mm |
| net weight | 65kg |
Adapt rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Additional adapters available |
| No. 8 horizontal rotor | 4x500ml | 4000r/min | 3080xg | 250ml, 200ml, 5m |
