| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TDZ5-WS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Model: | TDZ5-WS | Maximum Speed: | 5500r/min |
|---|---|---|---|
| Maximum Relative Centrifugal Force: | 5350xg | Maximum Capacity: | 4×750ml |
| Speed Accuracy: | ± 10r/min | Time Setting Range: | 1s-99min59s/1min-99h59min |
| Machine Noise: | ≦65dB(A) | Power Supply: | AC220V 50Hz 10A |
| Overall Dimensions (L×W×H): | 590mm×650mm×420mm | Net Weight: | 45kg |
| High Light: | Low Speed Bench Top Centrifuge Machine,Bench Top Centrifuge Machine 5350xg |
||

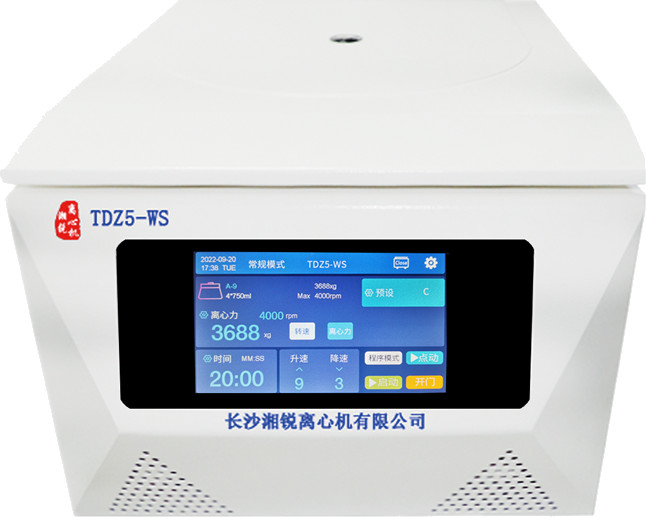

TDZ5-WS Desktop Low-Speed Centrifuge Maximum Relative Centrifugal Force 5350xg
Main technical performance
≥7-inch high-sensitivity (can be operated directly with gloves), high-definition touch screen control with resolution no less than (1024*600), easy operation, and intuitive display.
The setting parameters and operating parameters are displayed on the same screen, which is intuitive and easy to understand.
The centrifugal force and rotational speed can be automatically switched by pressing the button, and the rotational speed or centrifugal force can be quickly set.
Up to 10 groups of programs can be selected to realize step centrifugation, so that experiments can be diversified and performed in multiple steps at one time.
≥100 groups of programs can be set, and each group of programs can be simply named, making it easy to retrieve and distinguish different experiments during use, and to facilitate the repeatability of experiments.
≥11 acceleration gears, ≥12 deceleration gears, with customizable gears, and the acceleration and deceleration time can be customized according to experimental needs.
≥2000 operation records and fault records are automatically saved, which can effectively check the operation status of the instrument and the separation status of each batch of samples.
AC variable frequency motor, no carbon powder pollution, maintenance-free, long service life, accurate speed control accuracy
Application areas
TDZ5-WS desktop low-speed multi-tube rack automatic balancing centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and other fields. It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.
The main technical parameters
| model | TDZ5-WS |
| Maximum speed | 5500r/min |
| Maximum relative centrifugal force | 5350×g |
| Maximum capacity | 4×750ml |
| Speed accuracy | ± 10r/min |
| Time setting range | 1s-99min59s/1min-99h59min |
| Machine noise | ≦65dB(A) |
| power supply | AC220V 50Hz 10A |
| Overall dimensions (L×W×H) | 590mm×650mm×420mm |
| net weight | 45kg |
Adapted rotor parameters:
| Rotor number | Maximum capacity | Maximum speed | Maximum centrifugal force | Additional adapters available |
| No. 1 corner rotor | 12×15ml | 5500r/min | 5350×g | 5/1.5/2.2ml |
| Horizontal Rotor No. 2 | 24/32×15ml | 4000r/min | 2915×g | 10/5/2ml |
| Horizontal rotor No. 3 | 48/76×3/5ml | 4000r/min | 2702×g | |
| No. 4 horizontal rotor | 96/108×3/5ml | 4000r/min | 3225×g | |
| No. 5 horizontal rotor | 120×3/5ml | 4000r/min | 3225×g | |
| No. 6 horizontal rotor | 4×250ml | 4000r/min | 2702×g | 100/50/10/5/3ml |
| No. 7 horizontal rotor | 4×500/750ml | 4000r/min | 3580×g | 250/100/50/10/5ml |
| No. 8 mold standard plate rotor | 2×2/4×96 holes | 4000r/min | 3150×g |
