| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TDZ5-BP |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Model: | TDZ5-BP | Maximum Relative Centrifugal Force: | 5350xg |
|---|---|---|---|
| Maximum Capacity: | 4x100ml | Speed Accuracy: | ±20r/min |
| Time Setting Range: | 1min~999min | Machine Noise: | ≦58dB(A) |
| Overall Dimensions (LxWxH): | 400mmx500mmx350mm | Net Weight: | 35kg |
| High Light: | Desktop Low Speed Centrifuge Machine,Hospital Low Speed Centrifuge Machine,University Desktop Centrifuge |
||

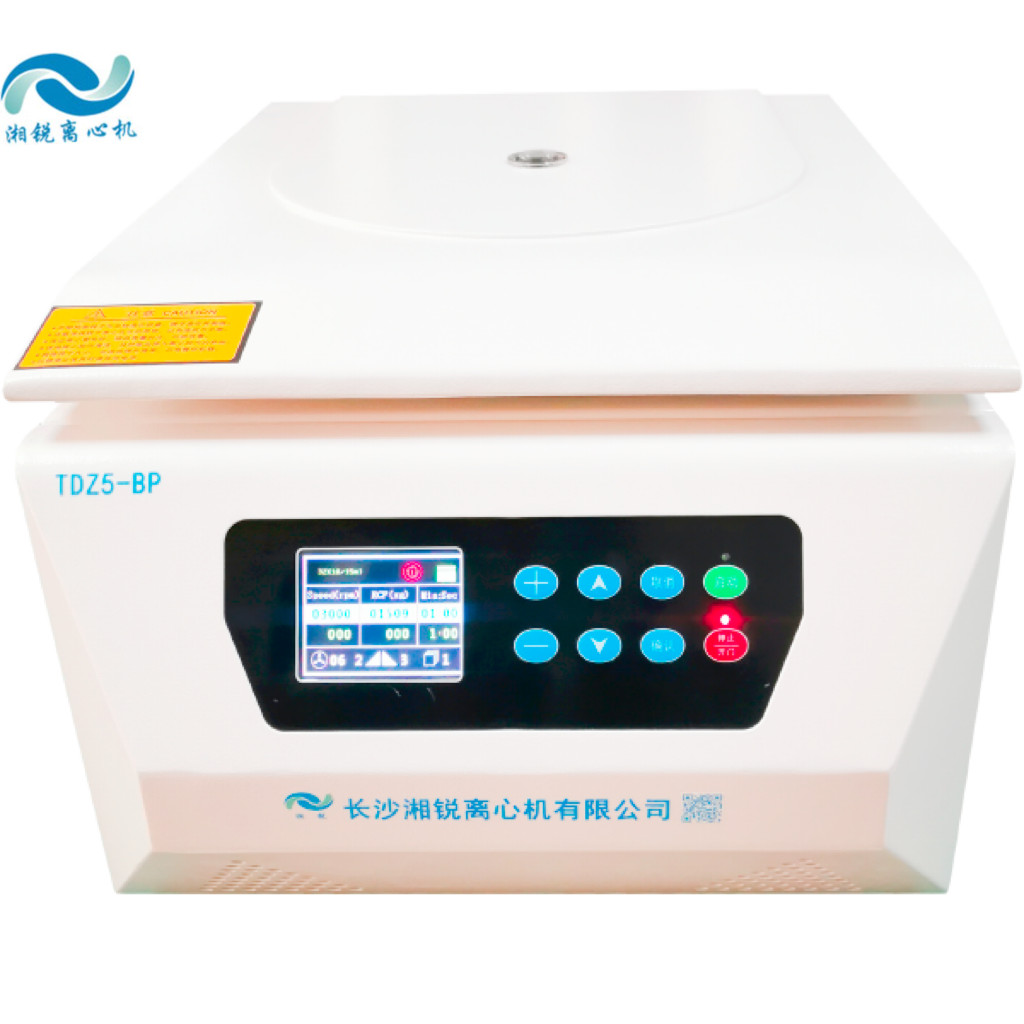

TDZ5-BP desktop low-speed centrifuge is used in hospitals and universities etc.
Main technical performance
·Microcomputer control, high torque AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
·Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
·Digital screen (LCD screen) display, humanized interface, simple and convenient operation.
·Real-time reading conversion and setting between rpm/RCF, convenient and fast.
·Equipped with an electronic door lock, equipped with various protection functions such as door cover self-locking and overspeeding; automatic fault alarm function, safe and reliable.
·It has 10 programs of increasing/decreasing rate curves, and the increasing/decreasing time can be set as needed.
Application areas
TDZ5-BP desktop low-speed centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and other fields. It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.
Host technical parameters
| model | TDZ5-BP |
| Maximum speed | 5500r/min |
| Maximum relative centrifugal force | 5350xg |
| Maximum capacity | 4x100ml |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~999min |
| Machine noise | ≦58dB(A) |
| power supply | AC220V 50Hz 10A |
| Overall dimensions (LxWxH) | 400mmx500mmx350mm |
| net weight | 35kg |
Adapt rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Additional adapters available |
| No. 1 corner rotor | 12x10/15ml | 5500r/min | 5350xg | 1.5/2.2ml |
| No. 2 horizontal rotor | 8x10/15ml | 4000r/min | 2680xg | 1.5/2.2/.5ml |
| No. 3 horizontal rotor | 12x10/15ml | 4000r/min | 2680xg | 1.5/2.2/.5ml |
| No. 4 horizontal rotor | 16x10/15ml | 4200r/min | 2860xg | 2/5ml |
| No. 5 horizontal rotor | 24x10/15ml | 4200r/min | 2860xg | 1.5/2.2/5ml |
| No. 6 horizontal rotor | 32x10ml | 4200r/min | 2860xg | 1.5/2.2/5ml |
| No. 7 horizontal rotor | 48x10ml | 4200r/min | 2980xg | 12ml |
| No. 8 horizontal rotor | 4x50/100ml | 4200r/min | 2860xg | 20/15/10/5ml |
| No. 9 horizontal rotor | 8x50ml | 4200r/min | 2860xg | 20/15/10/5ml |
