| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TGL-22MC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 50 sets/month |
| Overall Dimensions (LxWxH): | 600mmx570mmx370mm | Maximum Speed: | 22000r/min |
|---|---|---|---|
| Maximum Relative Centrifugal Force: | 35800xg | Speed Accuracy: | ± 20r/min |
| Temperature Setting Range: | -20～+40℃ | Temperature Control Accuracy: | ±1℃ |
| Compressor Unit: | Imported High-performance Compressor Unit, Environmentally Friendly Refrigerant R134a | Overall Machine Noise: | <58dB(A) |
| Net Weight: | 78kg | Model: | TGL-22MC |
| High Light: | Laboratory Centrifuge Machine 22000r/Min,High Speed Laboratory Centrifuge Machine,22000r/Min Desktop Refrigerated Centrifuge |
||

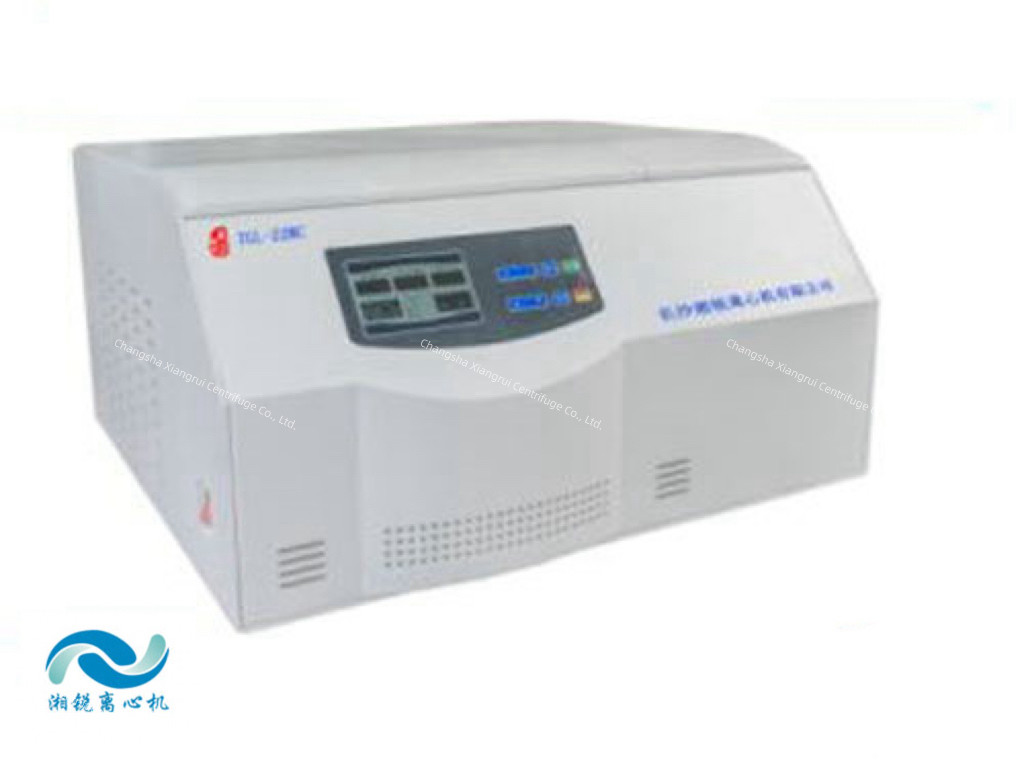

TGL-22MC Desktop High Speed Refrigerated Centrifuge Maximum Speed 22000r/Min
Main technical performance
1. Microcomputer control, AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
2. Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
3. TGL-20MC is a large-screen LCD display, TGL-20MC is a digital display, humanized interface, simple and convenient operation.
4. Real-time reading conversion and setting between rpm/RCF, convenient and fast.
5. Equipped with electronic door lock, equipped with various protection functions such as door cover self-locking, overspeed, overtemperature, etc.; automatic fault alarm function, safe and reliable.
6. It has 9 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
The main technical parameters
| Model | TGL-22MC |
| Maximum relative centrifugal force | 35800xg |
| Time setting range | 1min~999min |
| Maximum capacity | 4x100ml |
| Power supply | AC220V 50Hz 18A |
| Maximum speed | 22000r/min |
| Compressor unit | Imported high-performance compressor unit, environmentally friendly refrigerant R134a |
| Speed accuracy | ± 20r/min |
| Net weight | 78kg |
|
Application areas |
Clinical medicine, biochemistry, genetic engineering, immunology. It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities. |
Adapt rotor parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Adapter available |
| No. 1 rotor | 12x1.5/2.2ml | 20000r/min | 27890xg | 0.2ml, 0.5ml |
| No. 2 horn rotor | 24x1.5/2.2ml | 13200r/min | 16110xg | 0.2ml, 0.5ml |
| No. 3 rotor | 8/10x5ml | 13000r/min | 11400xg | 0.5ml, 1.5ml |
| No. 4 horn rotor | 12x10ml | 12000r/min | 14800xg | 1.5ml, 5ml |
| No. 5 rotor | 8x15ml | 12000r/min | 14800xg | 10ml |
| No. 6 rotor | 48x0.5ml | 16000r/min | 23699xg | |
| No. 7 rotor | 6x50ml | 12000r/min | 13000xg | |
| No. 8 rotor | 4x100ml | 9800r/min | 10600xg |
