| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TGL-18MC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 50 sets/month |
| Maximum Speed: | 16600r/min 18600r/min | Maximum Relative Centrifugal Force: | 23669xg |
|---|---|---|---|
| Maximum Capacity: | 4x100ml | Speed Accuracy: | ±20r/min |
| Time Setting Range: | 1min~999min | Temperature Setting Range: | -20～+40℃ |
| Temperature Control Accuracy: | ±1℃ | Compressor Unit: | Imported High-performance Compressor Unit, Environmentally Friendly Refrigerant R134a |
| Overall Machine Noise: | <58dB(A) | Power Supply: | AC220V 50Hz 18A |
| Overall Dimensions (LxWxH): | 600mmx570mmx370mm | Net Weight: | 78kg |
| High Light: | Refrigerated Centrifuge Equipment 16600r/Min,Desktop Refrigerated Centrifuge Equipment |
||

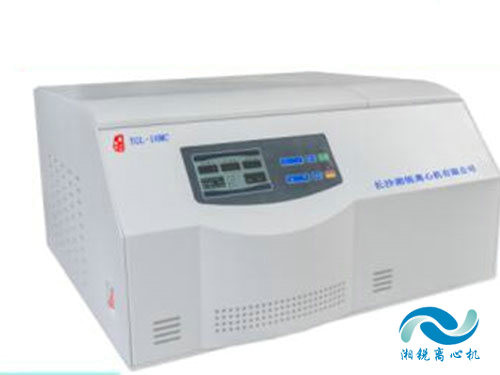

TGL-18MC Desktop High Speed Refrigerated Centrifuge
Main technical performance
Microcomputer control, brushless DC motor drive, stable operation, low noise and high speed accuracy.
Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
TGL-16MC has a large-screen LCD display, and TGL-16M has a digital display, humanized interface, and easy and convenient operation.
Real-time reading conversion and setting between rpm/RCF, convenient and fast.
Equipped with an electronic door lock, it has various protection functions such as door cover self-locking, overspeed, overtemperature, etc.; it also has an automatic fault alarm function, which is safe and reliable.
It has 9 programs of increase/decrease rate curve, and the increase/decrease time can be set as needed.
Application areas
TGL-16MC desktop high-speed refrigerated centrifuge is widely used in the fields of clinical medicine, biochemistry, genetic engineering, and immunology. It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.
The main technical parameters
| Rotor number | Rotor capacity | Maximum speed | Maximum relative centrifugal force | Adapter available |
| No. 1 rotor | 12x1.5/2.2ml | 20000r/min | 27890xg | 0.2ml, 0.5ml |
| No. 2 horn rotor | 24x1.5/2.2ml | 13200r/min | 16110xg | 0.2ml, 0.5ml |
| No. 3 rotor | 8/10x5ml | 13000r/min | 11400xg | 0.5ml, 1.5ml |
| No. 4 horn rotor | 12x10ml | 12000r/min | 14800xg | 1.5ml, 5ml |
| No. 5 rotor | 8x15ml | 12000r/min | 14800xg | 10ml |
| No. 6 rotor | 48x0.5ml | 16000r/min | 23699xg | |
| No. 7 rotor | 6x50ml | 12000r/min | 13000xg | |
| No. 8 rotor | 4x100ml | 9800r/min | 10600xg |
