| Place of Origin: | China |
|---|---|
| Brand Name: | xiangrui |
| Certification: | CE |
| Model Number: | TDL-6MC |
| Minimum Order Quantity: | 1pc |
| Price: | negotiable |
| Packaging Details: | by plywood box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500PCS/MONTH |
| Model: | TDL-6MC | Maximum Speed: | 6000r/min |
|---|---|---|---|
| Maximum Capacity: | 4x750ml | Max RCF: | 6060xg |
| Speed Accuracy: | ±20r/min | Temperature Setting Range: | -20～+40℃ |
| Time Setting Range: | 1min~999min | Temperature Control Accuracy: | ±1℃ |
| Power Supply: | AC220V 50Hz 10A | Machine Noise: | ≦58dB(A) |
| Dimensions (LxWxH): | 590mmx650mmx420mm | Net Weight: | 125kg |
| High Light: | Desktop Large Capacity Refrigerated Centrifuge,Large Capacity Refrigerated Centrifuge 6000r/Min,Desktop Low Speed Refrigerated Centrifuge |
||

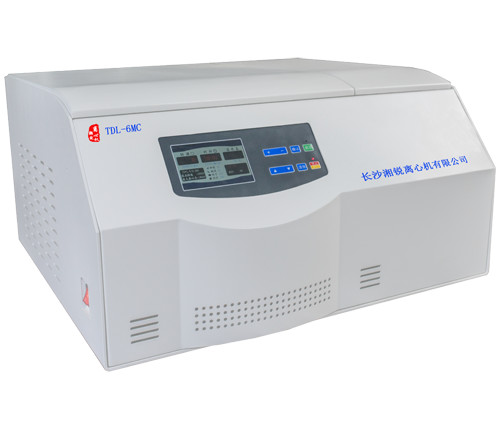

TDL-6MC Desktop Low Speed Large Capacity Refrigerated Centrifuge
Main technical performance
·Microcomputer control, AC variable frequency motor drive, stable operation, low noise and high speed accuracy.
·Touch panel, programmable operation, host operating parameters can be set according to needs and automatically stored.
·Large color screen display, humanized interface, simple and convenient operation.
·Real-time reading conversion and setting between rpm/RCF, convenient and fast.
·Equipped with an electronic door lock, equipped with multiple protection functions such as door cover self-locking, overspeed, overtemperature, etc.; automatic fault alarm function, safe and reliable.
·It has 9 programs of increasing/decreasing rate curve, and the increasing/decreasing time can be set as needed.
Application areas
TDL-6MC desktop large-capacity refrigerated centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and other fields. It is an essential instrument for centrifugal separation in comparative hospitals, scientific research units, and universities.
The main technical parameters
| model | TDL-6MC |
| Maximum speed | 6000r/min |
| Maximum relative centrifugal force | 6060xg |
| Maximum capacity | 4x750ml |
| Speed accuracy | ±20r/min |
| Time setting range | 1min~999min |
| Temperature setting range | -20～+40℃ |
| Temperature control accuracy | ±1℃ |
| compressor unit | Imported high-performance compressor unit, environmentally friendly refrigerant R134a |
| Machine noise | ≦58dB(A) |
| power supply | AC220V 50Hz 10A |
| Overall dimensions (LxWxH) | 590mmx650mmx420mm |
| net weight | 125kg |
Adapt rotor parameters
| Rotor type | Rotor capacity | Maximum speed | Max RCF | Additional adapters available |
| angle rotor | 12×10/15ml | 6000r/min | 6060xg | 5/1.5/2.2ml |
| horizontal rotor | 24×10/15ml, 32×10/15ml | 4200r/min | 2860xg | 5/2ml |
| horizontal rotor | 4×50/100ml, 8×50/100ml | 4200r/min | 2860xg | 5/10/15/20ml |
| horizontal rotor | 48×5ml, 72×5ml | 4200r/min | 2980xg | 2ml |
| horizontal rotor | 108×5ml, 120×5ml | 4200r/min | 3556xg | 2ml |
| horizontal rotor | 4×250ml, 4×500ml | 4200r/min | 3150xg | 48×5ml/28×15ml |
| horizontal rotor | 4×750ml, 4×1000ml | 4200r/m | 3580xg | 96×5ml/76×15ml |
| Mildew standard plate rotor | 2×2×96ml, 2×2×96ml | 4000r/min | 3050xg |
